The first thing to understand about AGP is that it's not exciting. In fact it's deeply, deeply boring, but it is also absolutely pivotal to the success of gaming-focused PC industry that we know today. Technically it wasn't unique or even revolutionary: it was just an extension of the existing 66MHz PCI 2.1 specification. The only difference really was that it had some enhancements designed specifically to handle textured 3D graphics and provides bandwidth exclusivity. In reality it's a bit trickier than that, of course, so let's take an in-depth look at how it came to be, as this is the slightly more interesting angle.

Note: this article is about consumer PC graphics at the 'affordable' end of the spectrum, with a focus on gaming. I'm also not getting heavily into the technical workings of AGP, as this is very well documented elsewhere. The Introducing AGP article from the September 23rd issue of PC Magazine is a good primer, while Anand Lal Shimpai's AGP Explained article goes into more technical depth. There's also the official Intel docs listed at the bottom of this page. The scope of this article is an historical perspective.

3D Takes Centre Stage

Prior to 1996, smooth 3D games on consumer PCs were only possible through some fiendishly inventive coding and a good CPU. If you wanted to play Doom, you needed a 486. Oh, you want to play Quake now? Buy a Pentium. Although out of the reach of most bedroom gamers in 1994, a Pentium-based system sporting a PCI graphics card was the nearest you could get to gaming graphics nirvana on a PC. The mainstream-focused Pentium 75 hit the market just before Christmas '94 and the following months saw hundreds of thousands of families purchasing their first IBM-compatible PC.

It was when RAM prices began to fall in 1996 that 3Dfx Interactive brought their Voodoo technology to the platform, establishing the PC as a legit gaming machine for the first time. Gamers could at last enjoy arcade-style high res, 3D, texture-mapped graphics in their PC games. But the limitations of the PCI bus were already being pushed, specifically the bandwidth between the system memory and the expansion cards themselves, such as graphics and storage. In an interview late in 1997, just after AGP came to market, John Carmack said:

"The biggest problem we have on 3Dfx right now is texture paging. Not triangle rate, not fill rate, it’s textures."

Scott Randolph, programmer of the Falcon 4.0 engine at Spectrum Holobyte, eloquently made the case for AGP at the developer conference in May 1996. He claimed that software 3D rendering typically used 80% of the CPU's processing time and filling pixels 'overwhelms' the PCI bus. The point was made that a Pentium running at 90MHz with dedicated 3D hardware outpaced one running at 166MHz using software rendering. While dedicated 3D hardware had solved this problem, it was still being held back by the system architecture itself.

PCI: The Limitations

Polygonal graphics had been used quite early in the PC's history, but it was the rise of texture mapping that had started saturating bandwidth. Devices using the PCI bus had to share bandwidth, which made it very difficult to guarantee graphics throughput. This negatively affected the speed of copying textures, for example, from main memory into the graphics RAM. By providing a dedicated connection to the system bus, AGP provided higher speed and non-shared bandwidth. The theory was that this would make it possible to keep the textures in system RAM, saving the time of transferring them over the bus and saving the cost of fast RAM on the video card. Additionally, the data and address buses were not multiplexed as on PCI, providing a further performance bump. Surprisingly, for what was high-end consumer tech at the time, one of the main motivations for AGP was cost saving. From version 1.0 of the AGP spec, published 31 Jul 1996:

"...3D rendering data structures may be effectively shifted into main memory, relieving the pressure to increase the cost of the local graphics memory ... Reducing costs by moving graphics data to main memory is the primary motivation for the A.G.P."

While the theoretical throughput of PCI was 133MB/s, cards were realistically operating at the 50-60MB/s range, while a 60Hz texture-mapped polygons at 8 bits per pixel with mipmapping demanded 96MB/s. AGP, with its 200MB/s specification, was designed to solve this problem with room to spare. Even without AGP-specific features, an AGP slot behaved like a 66MHz PCI slot. Intel obviously decided that just creating a dedicated PCI bus for graphics (like Micron PC's Samurai chipset did) wasn't going to be enough.

Bringing AGP Into Being

The first revision of the AGP specification was completed by Intel in December 1995 and was first announced at the 1996 Windows Hardware Engineering Conference (WinHEC) in April, followed by the inaugural AGP Developers Conference during May 30-31. Presentations (which can be downloaded here) were given by a number of people involved in the technology:

  • Mike Aymar, VP and General Manager of Desktop Products Group at Intel Corporation gave an overview of the tech. The main point of his presentation seemed to be about getting arcade-quality 3D graphics onto volume PCs, so it was obviously recognised as a growth market.
  • Dean McCarron of Mercury Research talked about the history of graphics hardware on PCs, from MDA/CGA right up to software-rendered 3D and the challenges being faced by 3D hardware.  Intel's endorsement of Direct3D was very apparent during the AGP briefings, with the alliance being referred to as "great 3D".
  • Paul Richardson, Technical Evangelist at Microsoft, talked a lot about operating system support and the bandwidth limitations of PCI.
  • Jay Torborg, Director of Graphics and Multimedia at Microsoft, gave a technical run-down on DirectX and emphasised the importance of polygons/s and pixels/s rates, their importance to the performance of 3D graphics, and the role AGP would play in guaranteeing these.
  • Michael J. Allen, Jeff Lauruhn and Norman Rasmussen of Intel discussed the electrical, mechanical, and protocol aspects respectively in incredible detail. They also emphasised the increased data rate of AGP 2x, one of the key upgrades from PCI.
  • Finally, John Davies the Director of Marketing for Consumer Desktop Products at Intel gave attendees a bit of a pep talk. He promised them that, if hardware and software vendors work closely together, they could grow the 3D graphics sector by a factor of 10 by 1998, with a target of arcade-quality graphics on the PC by the 2nd half of 1997. The Accelerated Graphics Port Implementors Forum was created to aid this, so that developers and OEMs could interact, access technical resources and attend workshops.

After releasing version 1.0 of the AGP specification on 31 Jul, hardware and software developers started in earnest the race to produce the first working samples. The race was on.

The Players

Cirrus Logic not only claimed to have produced the first AGP chip to be sampled (i.e. physically sent to card manufacturers so they could integrate it in their products) with their GD5465-based Laguna3D-AGP on 3 Feb, but also the first card to be demonstrated in Microsoft's Memphis operating system - a beta release of Windows 98 running DirectX 5.0 - a month later. Part of the reason Cirrus Logic were so quick off the mark was that their existing PCI-based GD5464 chip already supported storing textures in system memory. Cards based on the new chip were available to buy on 26 Aug, also being notable as one of the earliest cards to be equipped with RAMBUS's emerging RDRAM tech. According to Mercury Research, the performance of these cards was 'glitchy' at best, which is possibly why the chipset wasn't more widely adopted as the year went on. Here's a quote from their quarterly publication Accelerating PC Graphics from Q1 of 1997:

"The 5465 was announced in early 1997, and is Cirrus’ (and quite likely the industry’s) first ... AGP component. The device extends the 5464 with the AGP port and support for system-memory textures in the AGP environment."

, the 3rd largest graphics chip manufacturer at the time, claimed to have had "the fastest mainstream 3D graphics accelerator on the market today" in their 3DImàge 975. Their efforts to make an AGP version were announced at CeBIT, held in Hannover, Germany on 28 Feb. Trident claimed it was the first chip to 'meet the basic requirements' of the technology in a press release dated 24 Mar and this means they were the first manufacturer to produce a working card with an AGP connector. Technically this was just a cosmetic change to their existing PCI design, so it doesn't take the title as the 'real' first card. Jaton, the "largest" PC expansion card manufacturers of that time, announced they would use the 975 chipset on Jun 3. The 985, a faster version supporting AGP 2x, appeared soon afterwards and was being "sampled in limited quantities" at the end of August. This card also employed RDRAM. At the time FIC's socket 7 AGP board was released at the beginning of Nov, this card and ATI's effort were apparently the only ones to support 2x mode.

3Dlabs threw their hat into the ring on 24 Mar, announcing that their GLINT Gamma chip was 'expected to be the first AGP-compliant graphics product' but, as we know, Cirrus Logic's Feb announcement puts paid to this claim. They announced their PCI Permedia 2 card in May and an AGP variant was used by FIC to benchmark their KL-6011 board at the end of Aug. Shipments of the card were officially announced on 18 Aug but Tom's Hardware cite Diamond's Fire GL 1000 Pro as "one of the first AGP cards available" so they can't be ruled out.

NVIDIA were still very much a fledgling company at the time. Following the failure of their NV1 architecture, when Direct3D made its quadratic texture mapping technology irrelevant, they were understandably nervous to go 'all in' with AGP. They did promise to release "the industry's first 3D multimedia accelerator [on] ... AGP systems" at Intel's Visual Computing Day, announcing their RIVA 128 chipset at WinHEC a month later. Although their chip was the choice of some of the first AGP cards, such as Diamond's Viper V330 and STB's Velocity 128, these were AGP 1x models so neither qualify as the first card. This moment marks the beginning of a somewhat prosperous future for the firm, however.

Rendition had built a reputation for producing impressive and innovative 3D hardware since their V1000 chipset was unleashed in 1996. The PCI card's integration of both 2D and 3D capabilities set it apart from 3Dfx's Voodoo, and earned the honour of being the first card to support Quake in hardware. Their Vérité V2200 chipset was also demonstrated at WinHEC, with review hardware appearing by 5 Aug but also limited to AGP 1x.

S3 were expected to be strong players, having dominated the consumer 2D marketplace with their Trio64 line of chipsets and holding 43% of the market in Q3 of 1997. Their Virge/GX2 chip was unconvincingly announced at WinHEC on 8 Apr and didn't see anything like the adoption rates that other manufacturers enjoyed. Like everyone else, they showed off physical hardware at Comdex that November, but they can't be ruled out either due to very early mentions.

ATI's 3D Rage Pro also lays claim to be the first AGP graphics chip to be demonstrated at 2x mode, debuting at Intel's Visual Computing day on 24 Mar, nearly a month after Cirrus Logic's product was officially released. This is backed up by the June issue of Wave Magazine, so it could be argued as the first 'legitimate' AGP graphics card based on all these factors. This was still the case in November according to Thomas Pabst of Tom's Hardware.

Matrox were in pole position to take a stranglehold on the business 3D graphics market, with their Millennium II card widely considered to be the best performer around mid '97. They seem to be the only company that showed no interest whatsoever in being 'first', which is unsurprising considering their reputation for high performance backed by rock-solid drivers. They announced the AGP variant of the Millennium II - boasting their MGA-2164W processor - in September with full optimisation for the new bus. The card was widely adopted by system integrators, many of which were demonstrated at Comdex Fall that year.

Number 9 also sunk their teeth in, not just producing cards but also producing a chip of their own. They announced sampling of their AGP-supporting Ticket To Ride chip on 15 May, which is pretty early but not early enough. Their Revolution 3D card based on this chip was officially released to retail on 25 Aug, to coincide with Intel's release of their motherboard chipset, which would have been a pretty solid shout for 'first card' were it not for ATI's efforts.

Intel developed a graphics chip in conjunction with Lockheed-Martin's Real3D division called the i740 (codenamed Auburn) in parallel with the 440LX chipset. It was intended to showcase AGP at its best and had no on-board texture memory at all. They managed to produce a prototype in time for Comdex '97 but didn't officially announce the card until February '98. It's almost as if they delayed it deliberately so that other chip makers would push the technology instead, as there were significant fears that Intel was trying to take over the 3D hardware market, as they had done with motherboard chipsets.

What of 3Dfx, I hear you ask? It's difficult to get into this subject without bringing up the whole sorry story of how things went down, but I'll try to be brief. It seems that AGP threw a bit of a spanner in the works for them in '97. Their VSA100 chip was designed to be scalable from the beginning, a feature no other graphics chip on the platform could boast. Given that their Voodoo2 chipset was announced on 3 Nov, they had obviously spent '97 developing their PCI product while everyone else was chasing AGP. Although it was compatible with the new interface, the Voodoo2's key feature was SLI (Scanline Interleave), which allowed two cards to be linked together to increase performance. With AGP being a single-slot deal, only Quantum 3D produced an AGP Voodoo2, with their eye-wateringly expensive Obsidian card, while everyone else had to use up 3x PCI slots (including the requisite 2D card) for the same thing. Although the V2 took the industry by storm with its performance when it was released, the competition was moving so rapidly that things didn't work out well for them at all. 3Dfx never took AGP seriously, even with later products, so they do not belong in this story.

Related to the downfall of 3Dfx was NEC's PowerVR chipset. Their PCX2 card was released in April '97, and their next-gen chip saw a delayed release on the PC after it was adopted by Sega for their ill-fated Dreamcast console, a contract 3Dfx lost. As such, they made no overtures towards AGP whatsoever at this stage of development. VGA stalwarts Oak, meanwhile, released an AGP version of their WARP 5 at some point during Q4, after initially releasing the accelerator at E3 in July '97 without a single mention of the emerging tech.

The First AGP Graphics Card

Identifying the very first AGP card (which was the original motivation behind this article) depends on your criteria. First you have the graphics chip itself. Once a design has been finalised, it is 'sampled' i.e. manufactured in limited quantities and sent to graphics card makers such as Diamond or STB (unless you're Matrox or ATI who made their own boards). Once evaluation hardware and drivers have been produced, these are tested, refined, and eventually made available for sale through retail channels. Some existing graphics chips could be easily adapted to AGP, although many of the first AGP cards were simply PCI models with an AGP connector. This somewhat undermined AGP's performance because, to take full advantage of the new bus, the additional features of AGP must be supported and this usually required designing a brand new chip. This made significant demands on the finances and resources of the industry's chip makers and may have actually broken a few of them.

There are a couple of key dates in identifying the first board and the first is Intel's Visual Computing Day, on 24 Mar 1997. Here, cards were announced from ATI, Cirrus Logic, S3, Trident, and 3Dlabs, and hardware was demonstrated by each. How well that hardware was working (they would have been engineering samples) is another question. If we fast forward to Mercury Research's report in November (reflecting tests performed around September), they included working boards from #9, ATI, Matrox, 3Dlabs, S3 and NVIDIA. Only ATI, S3 and 3Dlabs are common to both lists, but ATI's card was the only one capable of 2x mode.

The boring truth of the situation is that a board doesn't really exist until it's available at retail, as anything prior to this would be engineering samples or evaluation hardware. These don't really count because they are like ghosts. This brings us to key date no. 2, which was the official launch of the 440LX chipset on 25 August 1997. If we look at the press releases on or around that date, we can see that a number of cards were released simultaneously:

  • NVIDIA announced that Diamond and STB would be using their RIVA 128 chip.
  • Cirrus Logic announced volume shipping of their Laguna3D board.
  • ATI announced two different AGP incarnation of their 3D Rage Pro in the XPERT@Work and XPERT@Play boards.

These three chip makers take the joint 'first AGP card crown' officially, but no one likes a tie so ATI are announced as unofficial winners based on the fact that theirs was the only AGP 2x card. Trident are out of the running because they had only just started sampling their 3DImage985 chipset (though the 975 was the first card with a physical AGP connector), while 3Dlabs were in the process of shipping their Permedia II to board manufacturers for development at this time. Matrox didn't announce their AGP Millennium II until September.

The First AGP Motherboard

This is somewhat easier. Although VIA's AGP-capable, VP3 chipset was announced in June, the first motherboard chipset to appear was Intel's. The specs for their 440LX chipset were unveiled in Jul 1997, with motherboard details released a month later. On 26 Aug, the day Intel's chipset hardware itself was formally released, it was FIC's KL-6011 that was the first AGP board to retail, despite Intel's own AL440LX and NX440LX board being announced that month.

An interesting point to note is that Intel didn't produce a chipset for the socket 7 platform, perhaps intending to leave other CPU manufacturers such as AMD and Cyrix - who couldn't use Intel's patented slot 1 - out in the cold. Via Technologies came to save the day, with their VP3 chipset. Pre-production versions of FIC's PT-2012 motherboard, released on 2 Nov, were the first to use it.


Remember that the primary driver behind AGP was cost-saving. The idea was supposed to be that, by storing textures in system RAM and transferring them as required into a comparatively small - but fast -cache on the graphics card, large amounts of 'expensive' video RAM weren't needed. The standard amount of video RAM on most cards was 4MB, although the type of RAM varied between EDO, SGRAM and RAMBUS. By the time AGP cards were fully developed, memory prices had dropped far enough that board manufacturers were quite happy to store textures on the card instead. AGP cards that were simply PCI cards adopting the new connector took advantage of the dedicated bus and increased frequency, but not any of the AGP-specific features such as 2x data transfers and side-band addressing.

From a software perspective, buggy drivers were an issue for a number of cards, as we'll see, and they worked in conjunction with Intel's VGARTD.VXD (virtual device driver) which enabled AGP feature support in Windows 95. This support became official as part of OEM Service Release (OSR) 2.1, which was released by Microsoft on 26 Aug '97. Note that the public version of DirectX at the time was 2.0a.

Although most cards were officially available to buy at Comdex Fall that year, some were available sooner but most were pre-release hardware.

Early Benchmarks

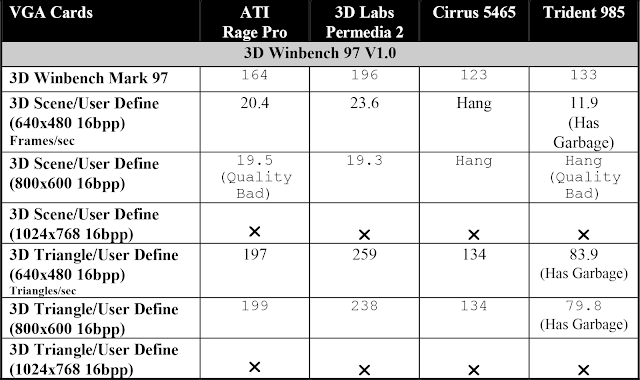

The earliest, publicly-available benchmarks of AGP cards I've been able to find come from FIC, in an evaluation of their KL-6011 board on 25 Aug '97. They ran tests using the DirectX-based 3D WinBench 97, under Windows 95 on a Pentium II 300MHz system. Initial results indicated that AGP performance was vastly superior to PCI, with AGP versions of the Permedia II and Rage Pro scoring 170 and 179 respectively, while a PCI Matrox Mystique scored 55.7.

Something that was common among desktop 3D cards of the time was that certain 3D features, such as fog tables, were either not implemented or were implemented badly. Such advanced features were the reserve of high-end cards such as ELSA's legendary GLoria chip. This was demonstrated by benchmark results showing the unrefined nature of AGP-based hardware and software at the time.

The Cirrus Logic and Trident offerings (both using RAMBUS memory, incidentally) barely cross the line, while ATI's card does a respectable job but is outperformed across the board by the Permedia II. ATI's card may have been the first to market, but it wasn't the most credible product at the time.

Anandtech's review of the Diamond Viper V330 (using NVIDIA's RIVA 128) at the end of September saw it outscore the Rage Pro's 191 in 3D WinBench 97 with a score of 280. Chalk one up to NVIDIA.

Here we see results of a test of high-end, 300MHz Pentium II-based systems in the 23 Sep issue of PC Magazine, again using the 3D Winmark 97 AGP graphics benchmark. They used an AST Bravo machine to compare the PCI and AGP 2x versions of the ATI 3D Rage Pro and found framerates to be 1.85fps and 18.6fps respectively, which is a jaw-dropping improvement. As you can see in the graphic above, the Dell, Gateway and Micron computers all used 3D cards based on NVIDIA's RIVA 128 chip and significantly outperformed the competition in 3D tests (except for the AGP-specific one, which the Gateway couldn't perform). The AST used ATI's Rage, while the NEC sported Number Nine's Revolution.

Tom's Hardware put a bunch of AGP cards to the test at the end of October, and NVIDIA's chip, yet again, came out on top by some margin. ATI's card couldn't participate at the time because of driver issues, so there is no direct comparison at this point. The Permedia II put in a respectable showing though, particularly in OpenGL tests, while Number Nine's card languished behind. A more extensive round-up came at the beginning of November.

Mercury Research's Q4 review (Nov '97) of 3D accelerators told a similar story, using the more recent 3D WinBench 98 suite (featuring DirectX 5) and a 300MHz-based Pentium II system. Although they tested 28 cards, only 6 were AGP capable.

As you can see, the RIVA 128 tops the results again by a decent margin, but not a million miles away from the Rage Pro. Clearly the benchmark wasn't optimised for AGP, as the scores from each respective PCI equivalent (not shown) were faster, but by a negligible margin.

One factor Mercury struggled with in particular was drivers. This was particularly apparent with the 3Dlabs offering from Diamond, where the AGP card scored lower (317) than the PCI offering (352).

Performance was predicted to improve dramatically over time as drivers improved, but this is where we get into the first mention of controversy. In their Q4 report, Mercury explained that some vendors were expressing concern that competitors' drivers were, perhaps, 'too good'. This was allegedly achieved by sacrificing compatibility and accuracy for speed, with the conclusion that:

"The atypical performance of the “good” drivers raises the suspicion that something unusual is taking place."

This is something we'll come back to.

Once he had got all the drivers he needed, Thomas Pabst ran another group test of 3D cards in November. The results are reproduced here:

Yet again, NVIDIA's RIVA 128 is still dominating the scores, as it is used by the top 3 cards. Also observe no discernible difference between the AGP and PCI models, which again show that the test is not AGP-optimised. We do see that the inclusion of ATI's Rage Pro puts it ahead of the Diamond Fire GL (powered by the Permedia II), but some way behind the leaders.

The coup de gråce comes in the form of PC Magazine's insanely detailed group test of graphics cards at the beginning of December. Like we didn't know it already, NVIDIA takes the crown (again), and the same patterns as before are repeated.

I feel kinda sorry for Trident, S3 and Oak with their pathetic offerings tacked onto the end of the 'proper' results table. While ATI seem very much to have been the first to get a card to market, there is no doubt that NVIDIA won the battle of whose card was best quite early on. I think 3Dlabs should also get a shout for their early success and stable offering in the development of the Permedia II, although they're not around anymore to celebrate it.

Card Controversy

But there's a problem. Remember what Mercury Research said about something 'unusual' taking place? In Feb of '98, Tom's Hardware reported on this mystery, with some very intriguing findings. Notice how every benchmark I've shared has been in the same program: 3D WinBench. It seems that ATI had optimised their drivers to perform outstandingly well in this high-profile and widely-used test suite in an attempt to mask the hardware's deficiencies in real world applications such as games.

AGP 2.0 aka 4x and the Pro Variant

One potentially confusing aspect of AGP is the naming convention. While there were only 3 versions (1.0, 2.0 and 3.0) released - before it was superseded by PCIe - each of these represented a doubling of the bandwidth (2x, 4x, 8x). Graphics cards and motherboards were usually advertised based on which speed they supported, rather than the version. Remember that AGP 1.0 represented both 1x and 2x speeds, while AGP 2.0 represents 4x speed, hence the confusion. Each time the spec changed, so did the voltage, so new cards couldn't be used in old slots and vice versa, although there was such a thing as a 'universal' slot. This has been expertly documented elsewhere.

Development of AGP 4x was announced at Intel's Visual Computing Day and was expected to be added to the official spec by the end of the year, but wasn't officially published until May '98. Not long after this, specification for AGP Pro was released, which was an extension of standard AGP intended for workstations, providing up to four times (110W) more power for industrial applications. It was also adopted by Apple in their Power Mac G4 range, albeit not until October 1999. They added an additional power connector to their boards to support their Apple Desktop Connector (ADC) monitors via a single cable.

New AGP cards are still available today, although they are somewhat utilitarian.

Competition & Litigation

AGP was intended as an open standard from the beginning. Intel believed, and stated numerous times, that a "reciprocal royalty-free license" would be the only way to foster rapid development of the platform. It became apparent through a 2001 court case, Intel Corporation v. VIA Technologies, Inc., that Intel probably only wanted this openness on Intel-based systems. Without wanting to get into it too much (again), Intel's competitors had been using their CPU socket designs since the '70s. Intel brought an end to this with the introduction of the Pentium II's slot 1 in summer '97, leaving the likes of AMD, Cyrix and IDT with socket 7 (I'm ignoring socket 8). It wasn't until 28 May '98 that AMD officially introduced their competing CPU, the K6-2. In order to support higher clock speeds, AGP and other technical improvements, AMD relied on 3rd parties such as SIS, ALi and VIA to design and fabricate motherboard chipsets for their new CPU, as they didn't make chipsets themselves. By extending the socket 7 specification, the 'Super 7' platform was born.

Intel didn't appear to intentionally obstruct these companies from making AGP work with their competitor's CPUs, but it's possible they didn't expect it to happen. They weren't far wrong, as AGP was plagued with reliability issues on Super 7 until the Althon's slot A platform was introduced. Taking VIA to court was the first evidence that Intel's open licensing of AGP was disingenuous, claiming that only the "baseline" features of AGP were licensed as such. In particular they argued that the new 'fast write' feature was excluded from the license, in an attempt to at least stifle performance on 3rd party motherboards. Unfortunately for them, the court rejected their semantic argument and dismissed the case.

AGP's Legacy

There really isn't much more to say about it all. What took place in 1997 was AGP almost single-handedly setting the 3D gaming graphics industry on its path to the success that we recognise today. Prior to that, there were disparate efforts by many competing parties (led largely by 3Dfx), a bunch of proprietary APIs and a general headache for games developers and users alike. With Windows 98, Microsoft's DirectX platform began to be taken more seriously. Efforts from graphics card manufacturers unified the PC gaming platform with Windows, instead of DOS, becoming the dominant gaming operating system. Say what you like about Intel and Microsoft's dominance of the platform - their efforts in bringing arcade-quality games to the PC were a resounding success, especially considering how hard it had been, historically, to establish new hardware standards (*cough* EISA *cough* MCA *cough* VLB).

Although there were a total of 38 competitors vying for a piece of the 3D pie in 1998, we know how many chipset makers came out the other side: two. ATI were eventually acquired by AMD in 2006 and nVidia hired pretty much every 3D graphics expert in the industry, most of them coming from SGI's OpenGL dev team.


If you have enjoyed reading this, please consider buying me a coffee via Ko-Fi. I try my best to make sure that everything I write is historically accurate by citing primary sources (over 100 in this article) and weaving together some kind of story from everything, but if you do think I've got something wrong, please comment below with a source and I'll be really happy to make corrections. I really enjoy writing about this stuff and it can be really time consuming! Also, I promise to give 20% of every donation to the Internet Archive, without which this article (and others I've written) wouldn't be possible. Thanks for reading :)
